VLX 80 Fixed / Picture Window

VLX 80 Fixed / Picture Window in San Jose, CA | Meridian Windows and Doors San Jose

The VLX 80 Fixed / Picture Window is a floor-to-ceiling glass solution built on a slim aluminum frame that measures just under two inches wide. There’s no visible hardware, no operating sash, nothing between you and the view except clean glass. Homeowners in San Jose choose it for modern homes, hillside properties, and any room where natural light matters more than ventilation. Meridian Windows and Doors San Jose is an authorized ViewLux installation partner, which means you get factory-backed product quality plus our local installation team in San Jose that handles everything from measurement to final inspection. Call (669) 201-3739 to talk about your project.

Call (669) 201-3739

Product Overview – VLX 80 Fixed / Picture Window

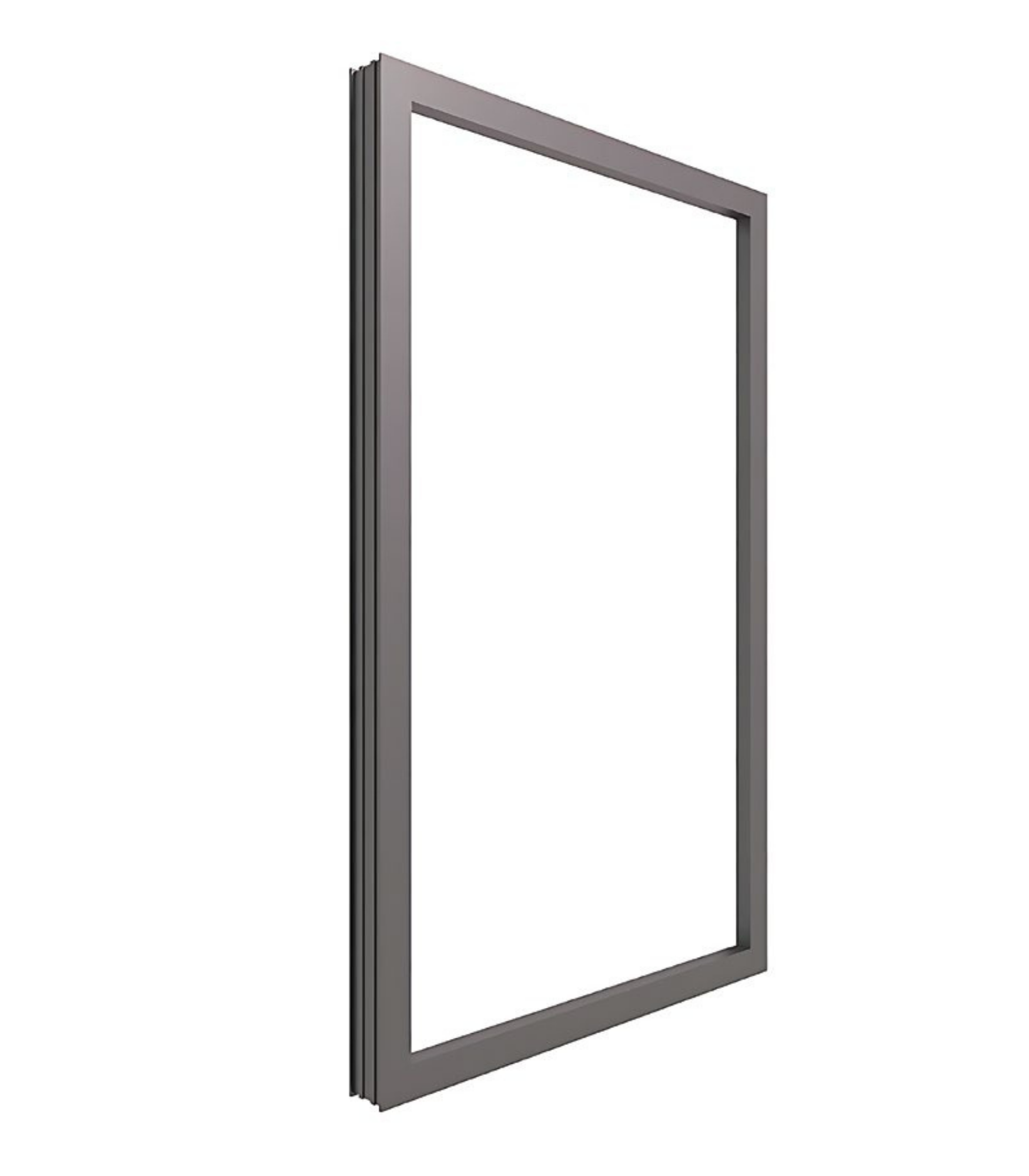

The VLX 80 Fixed / Picture Window is designed around one idea: put as much glass in the opening as possible. The frame profile measures 1.97 inches wide, which is noticeably slimmer than standard residential aluminum frames. That narrow sightline means more visible glass area per window opening, so a five-foot-wide unit feels like a wall of glass instead of a window with a thick border around it.

This is a fixed window, meaning it doesn’t open. That’s not a limitation, it’s the point. Fixed windows have no operating hardware, no hinges, no crank, no sliding track. That eliminates the most common failure points in any window system. For San Jose homeowners, it also means a cleaner architectural look. Picture windows like the VLX 80 work well in living rooms facing the Santa Cruz Mountains, dining rooms overlooking a backyard, or stairwells where you want daylight without operable sashes.

The frame is extruded aluminum with a wall thickness of 0.079 inches. That’s a meaningful number because it determines how rigid the frame stays over decades of thermal cycling. San Jose sees summer highs above 90°F and winter nights dipping into the 30s. Aluminum expands and contracts with temperature change, and thinner extrusions can flex or bow over time. The VLX 80’s heavier wall section resists that movement, which keeps the glass seated properly and the seal intact.

Because it’s a fixed unit with no moving parts, maintenance is minimal. There’s no track to clean, no weatherstrip to replace, no lock to adjust. Buyers who’ve dealt with sticking sliders or cranky casement windows in older San Jose homes appreciate that simplicity. Meridian Windows and Doors San Jose recommends the VLX 80 for homeowners who want the largest possible glass area with the least long-term upkeep.

Technical Specifications

Here are the key numbers for the VLX 80 Fixed / Picture Window, as installed by Meridian Windows and Doors San Jose:

• Frame material: Extruded aluminum, thermally broken
• Frame wall thickness: 0.079 inches
• Profile width (visible sightline): 1.97 inches
• Maximum span: Up to 120 inches wide on a single fixed unit
• Operation: Fixed / non-operable (picture window)
• Glass options: Clear, Frosted, Low-E, Tempered, Laminated, Gray Tint, Black Tint
• Frame finish options: Premium Black, Pure White, Anodized Silver, Bronze, Champagne, Teak Wood
• Installation standard: AAMA 2400/2410 compliant, AAMA 812 perimeter sealant
• Thermal performance: NFRC-rated with thermal break technology
• Wind load rating: Engineered for Bay Area and hillside exposure requirements

All units are fabricated to order based on your exact opening dimensions. There’s no standard-size inventory, which means you get a window that fits your San Jose home precisely, not a stock size that gets shimmed into place.

Performance Features

Thermal Efficiency

The VLX 80 uses a polyamide thermal break between the interior and exterior aluminum profiles. That barrier interrupts conductive heat transfer through the metal, which is the biggest weakness of non-thermally-broken aluminum windows. Combined with Low-E glass, the window carries an NFRC rating that matters for San Jose’s warm summers and cool winter mornings. Your HVAC system works less, especially on west-facing walls that catch afternoon sun.

Acoustic Performance

Fixed windows seal tighter than operable units, which naturally reduces outside noise. For homes near Highway 87, 280, or busy surface streets in San Jose, we recommend laminated glass. The PVB interlayer in laminated glass dampens sound transmission significantly more than standard annealed or tempered glass. We’ve installed VLX 80 units in Willow Glen and downtown San Jose where traffic noise was the primary reason for the project.

Airtightness & Weather Seal

The VLX 80 fixed frame has no operable seams, so air infiltration is inherently low. On the installation side, Meridian Windows and Doors San Jose seals every perimeter joint with AAMA 812 low-expansion foam sealant. That spec matters because it means the foam won’t bow the frame as it cures, and it maintains a continuous air seal around the entire opening. The result is a window that doesn’t leak air at the rough opening, which is where most window performance is lost.

Waterproofing

A window is only as watertight as its flashing and sealant work. We install per AAMA 2400/2410 standards, which govern proper flashing, shingling, and drainage at the rough opening. San Jose’s winter rain season, especially in years with heavy atmospheric river events, tests window installations hard. A poorly flashed picture window will show leaks at the sill or head within the first storm. Our installation process includes a final water test before interior trim goes back on.

Wind Resistance

San Jose sits in a valley, but homes in the East Foothills, Almaden Valley, and elevated lots near Silver Creek get real wind exposure. The VLX 80 is wind-load rated, and the 0.079-inch frame wall gives it the structural rigidity to handle gust loading without flexing the glass. For large spans up to 120 inches wide, we verify engineering requirements before ordering to make sure the unit meets local code for your specific site exposure.

Security & Hardware

A fixed window has no latch to pry, no track to jimmy, and no sash to lift out of its frame. That’s a built-in security advantage. For ground-floor installations or homes where security is a top concern, we can upgrade the glass to impact-resistant laminated. That option holds the glass together even under severe impact, which is also useful in wildfire-adjacent zones where radiant heat can cause standard glass to fail.

Color & Glass Options

The VLX 80 comes in six frame finishes, and the right choice depends on your home’s style. Premium Black is the top seller in San Jose right now, especially for modern and mid-century homes in neighborhoods like Rose Garden and Willow Glen where dark window frames create strong contrast against light stucco or wood siding. Pure White reads traditional and works well on Spanish Revival and ranch-style homes. Anodized Silver is the architectural standby, a raw aluminum look that suits industrial and contemporary designs. Bronze and Champagne are warmer metallics that complement homes with earth-tone exteriors. Teak Wood is a wood-grain finish that gives you the appearance of timber without the rot, termite, and repainting issues that real wood frames have in San Jose’s climate.

On the glass side, Clear is standard. Low-E is the upgrade we recommend for any south or west-facing wall; it cuts solar heat gain while staying visually transparent. Tempered is code-required for windows near doors and low to the floor. Laminated adds sound control and impact resistance. Frosted works for bathrooms or side yards where you want light without visibility. Gray Tint and Black Tint reduce glare and heat but change the view color, so we usually suggest viewing samples in your actual room before committing.

Installation by Meridian Windows and Doors San Jose in San Jose

We’ve installed fixed and picture windows across San Jose for years, and we’ll tell you plainly: the installation is more important than the window. A $3,000 window installed poorly will leak, fog, and fail faster than a $1,500 window installed correctly. That’s the reality of the window business.

Our installation process for the VLX 80 starts with a pre-install inspection of the rough opening. We check the framing for rot, level, and square before we order anything. If we find structural issues, we stop and address them first. We don’t install new windows into failing frames.

On install day, we set every unit level, plumb, and square. A picture window that’s even slightly out of square will build stress into the glass, which can cause seal failure or glass breakage years later. We shim precisely, fasten per manufacturer spec, and seal the entire perimeter with AAMA 812 low-expansion foam. That foam spec matters because cheap expanding foam can push the frame out of alignment as it cures. We use the right material for the job.

Flashing and waterproofing follow AAMA 2400/2410 standards, which are the industry benchmark for residential window installation. We flash the sill pan, shingle the head flashing, and integrate the house wrap or building paper correctly. This is where San Jose’s winter rains separate professional installs from handyman jobs. A fixed window that faces the weather has zero tolerance for sloppy flashing.

After the window is set and sealed, we run a water test on the exterior and inspect the interior for any daylight gaps around the frame. Only then do we trim out the interior and clean up the job site. We haul away the old window and leave the room ready for paint or finish work.

One more thing worth saying: ViewLux warranties cover manufacturing defects, but a warranty claim gets denied if the window was installed improperly. When Meridian Windows and Doors San Jose installs your VLX 80 in San Jose, the installation is done to manufacturer and AAMA standards, so your warranty stays intact.

Frequently Asked Questions – VLX 80 Fixed / Picture Window

Get a Quote – VLX 80 Fixed / Picture Window in San Jose

If you’re planning a window replacement or new construction project in San Jose, the VLX 80 Fixed / Picture Window deserves a serious look. We’ll come out, measure your openings, talk through glass and finish options, and give you a line-item written quote with no pressure and no surprises. Call (669) 201-3739 to schedule your free on-site measurement today.

Written by the team at Meridian Windows and Doors San Jose, serving San Jose, CA and surrounding communities.
